Mini mobile ready mix 35 CUM concrete batching mixing plant for sale

FOB Reference Price:Get Latest Price
$30,000.00 - $68,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YHZS35
Production Capacity:
35m3/h
Report Suspicious Activity
Overview
Quick Details
Power Type:
Electric
Power(W):
60kw
Dimension(L*W*H):
15000*8000*12000 mm
Weight:
60ton
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Applicable Industries:
Construction works
Condition:
New
Place of Origin:
Henan, China
Brand Name:
UNIQUE
Certification:
CE ISO
Productivity:
35m3/h
Mixer:
JS750
Aggregate Batcher:
PLD1200-4
Discharging Height:
3.8m
Cement Screw conveyor:
D219mm
Type:
Mobile concretes batching plant
Control System:
Siements PLC+PC
Cement Silo:
60ton
Color:
Can be customized
Aggregate Bins:
4x5m3
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
3PCS 40'HQ is needed of this YHZS35 mobile concrete batching plant.
Standard exported package of mobile ready mixed concrete plant.
Port
Qingdao
Product Description

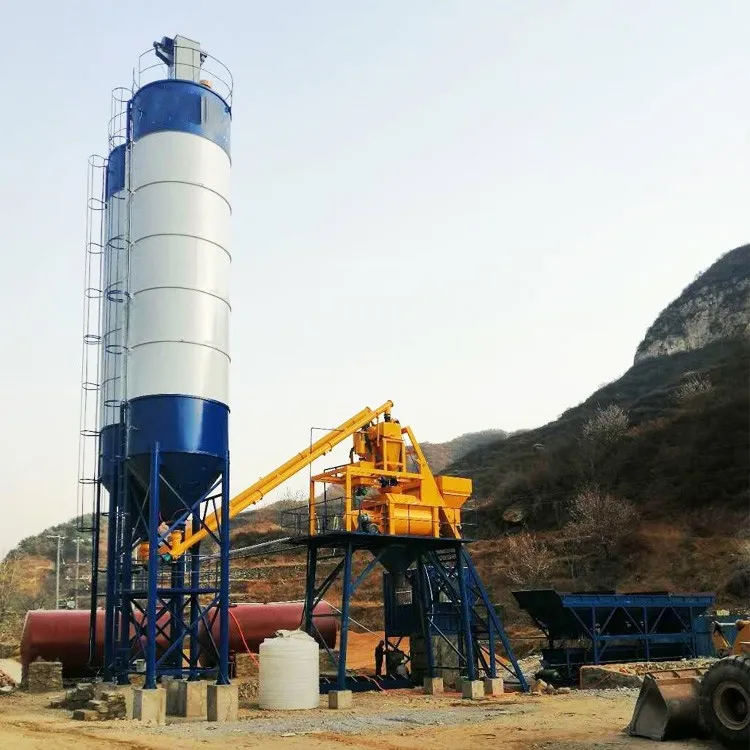

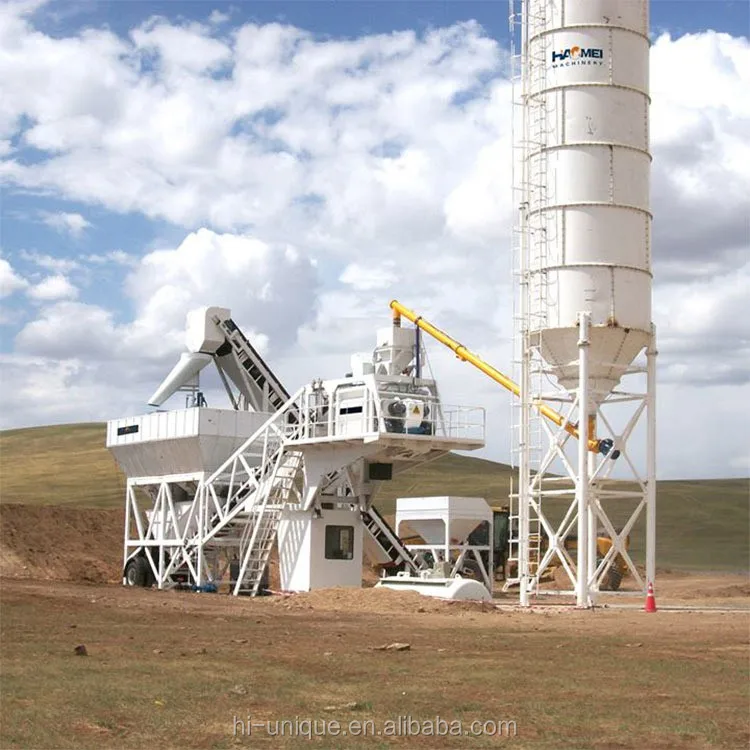

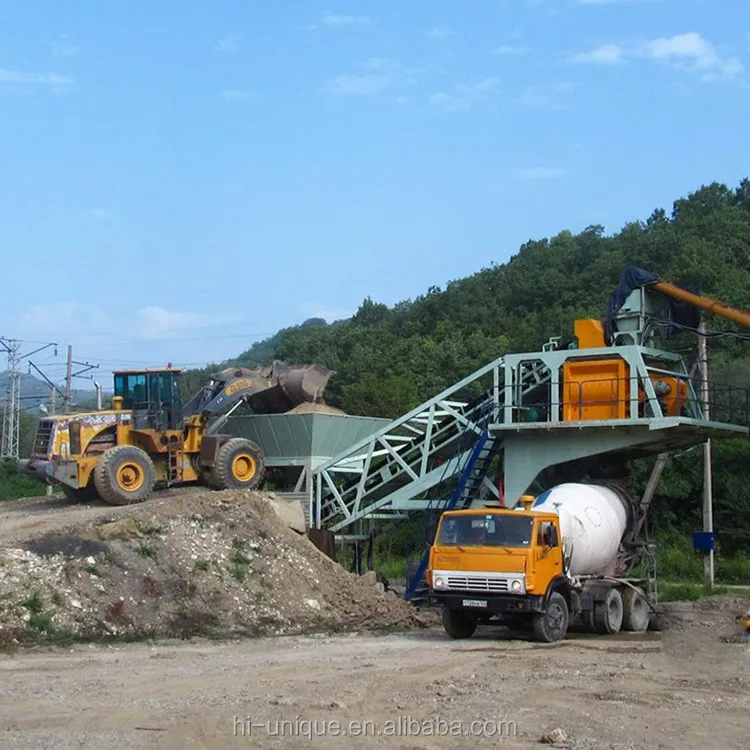

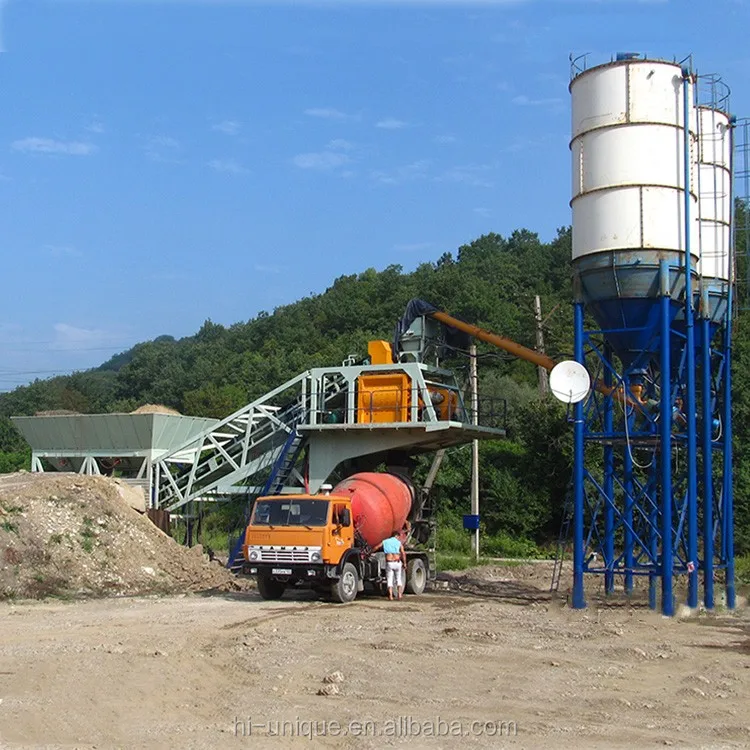

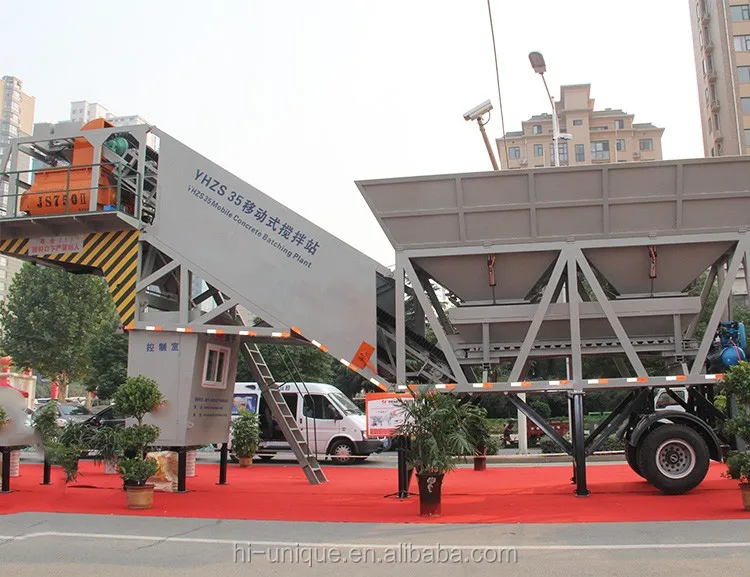

Descriptions of YHZS35 Mobile Concrete Mixing Plant

This series of mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.

Technical Parameters OF YHZS35 Mobile Concrete Mixing Plant



   MIXING SYSTEM
Twin Shaft Concrete Mixer:
JS750
Volume
 1250 L
Capacity
 750 L
QTY of Paddle
 16 pieces
Paddle Speed:
30.5r/min
Mixing Motor
 30kw



AGGREGATE SYSTEM
Aggregate Batcher
PLD1200
Capacity
60 m3/h
Volume
4×5m3
Sort of aggregate
4
Sand vibrator
0.37kw×2
Power
7.5Kw

CONTROL SYSTEM


PLC command and control operation
Main electrical components: Schneider
17'' colorful computer
Manuel and Auto Control is freely changeable
WEIGHTING SYSTEM
Aggregate weighing
Weighing Capacity: 1.6 m3
Precision: ±2%
Cement weighing
Weighing Capacity: 1m3
Precision: ±1%
Water Weighing
Weighing Capacity: 150 kg
Precision: ±1%
Additive Weighing
Additive silo capacity: 40 kg
Pneumatic valve: Φ50 mm
Pump: 3 kw
 CEMENT SYSTEM
Cement Silo: 50 Ton / 60Ton / 100Ton
Cement Screw Feeder: 2 units
Diameter: Φ219mm
Length: 11.8 m

Main Features

1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!


2. The whole plant uses automatic control systems, Siemens PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.

3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.

4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.

5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.

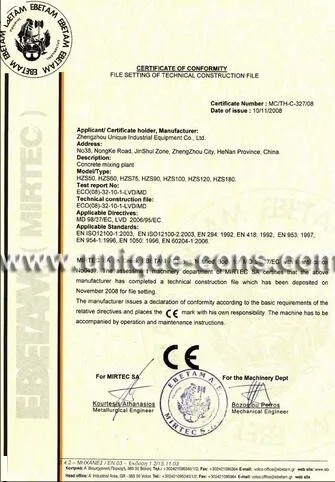

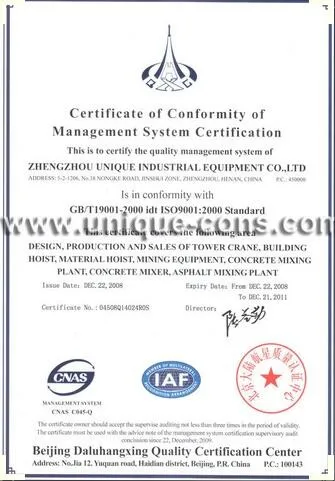

Certifications
Detailed Images

Machine Parts

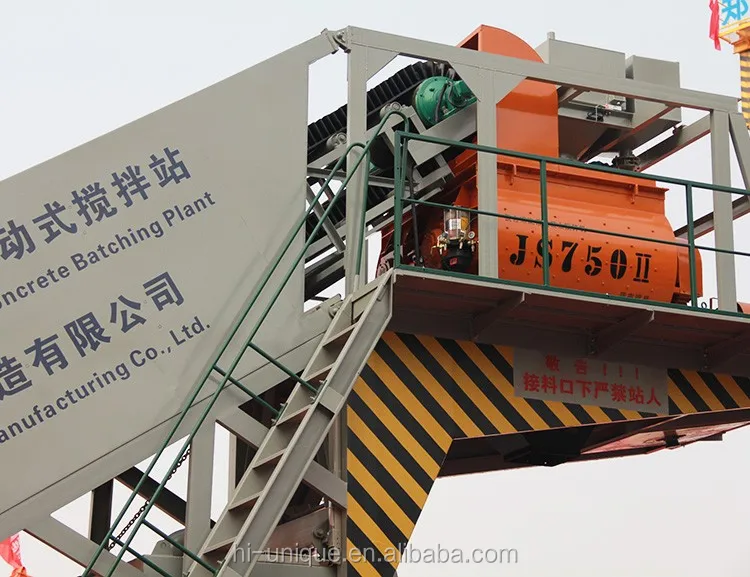

Name: Concrete mixer

Original: China

Domestic famous engines, strong driving force, fast and wide mixing range, high economic benefits with twin-shaft compulsory concrete mixer.

Main Parts

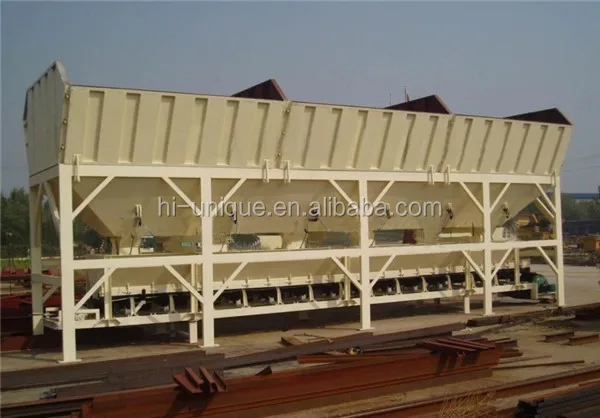

Name: Aggregate batcher
Original: China
Adopt the technology of "click to supplement",which has been awarded the national patent(Patent No.ZL200520022852.7),to ensure the  accuracy od dynamic measurement no more than ±1%.

Machine Parts

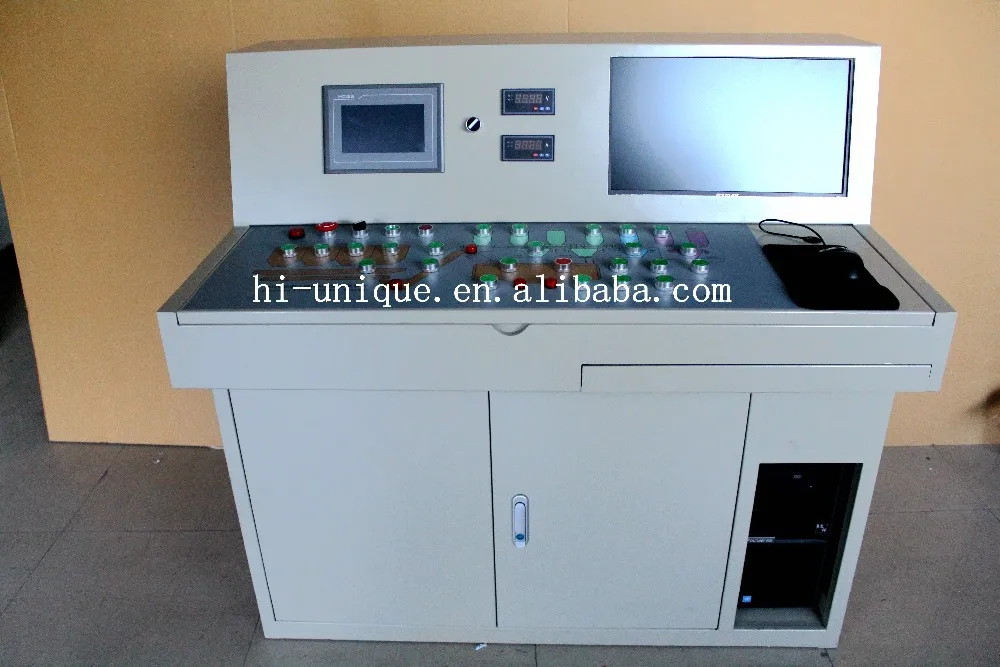

Name: Control System
Original: China
Asseemble two suits operating devices (touch-screen and computer),and can be operated manually,semi-automatically and automatically,which ensures the working reliability.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

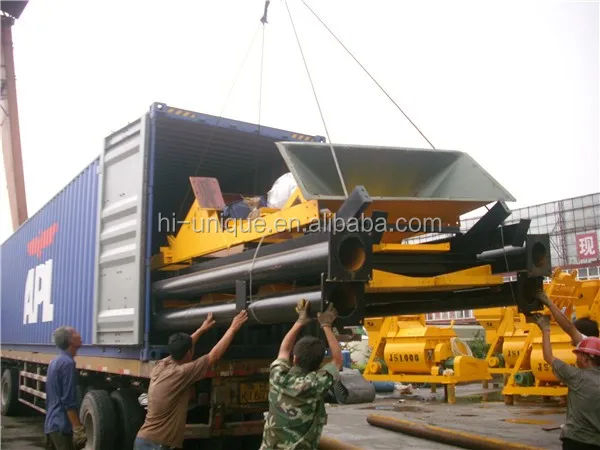

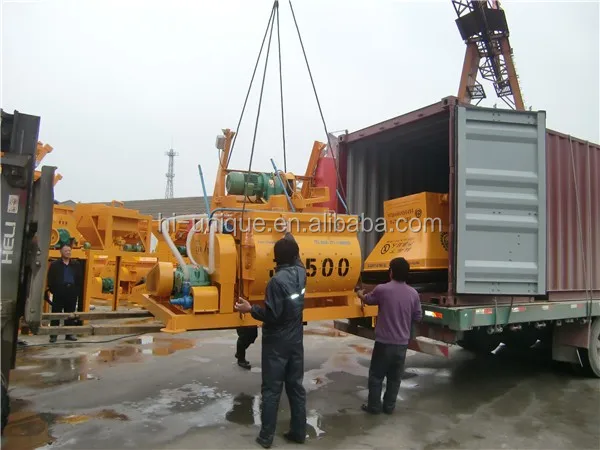

Packing & Delivery
Packaging
Container
3PCS 40'HQ
Weight
≈25Ton



Packaging Details
Standard exported package of mobile ready mixed concrete plant.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging

Standard exported package of mobile ready mixed concrete plant.
