High quality cheap price concrete mixer pump for south america

FOB Reference Price:Get Latest Price
$10,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JBS40B-JS500
Power(W):
18.5KW
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
5100x2250x3100
Weight:
4500kg
Warranty:
12 Months
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China
Brand Name:
UNIQUE
Certification:
ISO&CE
Product name:
concrete mixer pump
Max. theory concrete output:
25m3/h
Max. vertical transport distance:
100m
Max. horizontal transport distance:
500m
Hopper capacity:
600L
Outlet diameter:
180mm
Electric model:
China Brand
Max.concrete pumping pressure:
28MPa
Electrical engineering power:
55kw
Inside diameter of delivering pipe:
125mm
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
FCL, LCL or according to clients' requirement
Port
Qingdao
Product Description


The concrete mixer pump have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.

The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.


Items
Units
Parameters
Max. theory concrete output
m3/h
25
Max.concrete pumping pressure
MPa
8
Distribution valve type
S Valve
Concrete cylinder diameter×stroke
mm
200×1000
Hopper capacity
L
600
Electrical engineering power
kw
55
Pumping system pressure
MPa
28
Mixing system pressure
MPa
6-8
Electric model
Chinese Brand
Max. transportation distance (vertical/horizontal)
m
100/500



The characteristic of concrete mixer with pump


1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps.


2. Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability.


3. Feeding, mixing, flip and pumping are all controlled by hydraulic power, automation and saving operation labor


4. Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.


5. Cone sealing of all pipes make the pipe joints seal reliably.


6. The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.




Certifications

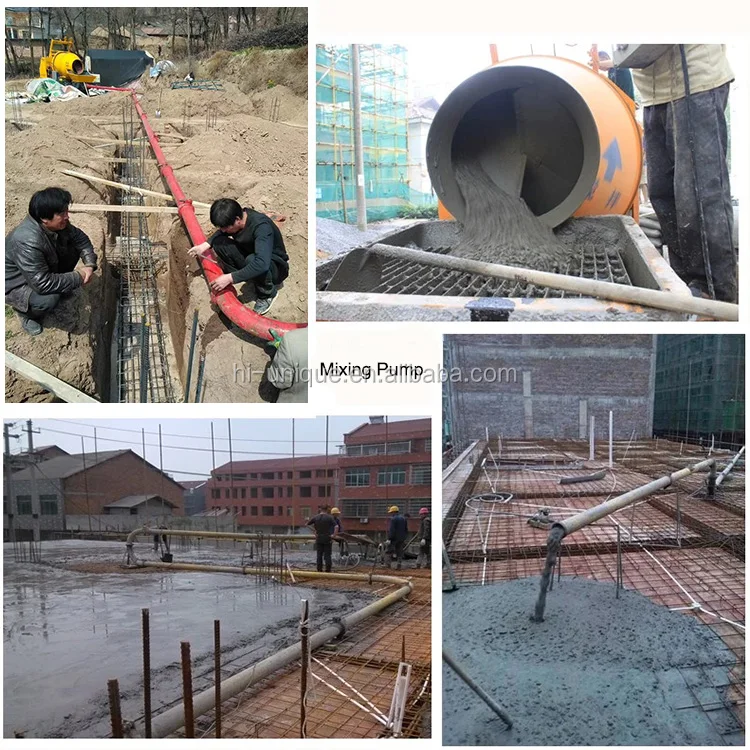

Application

Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.

Convey greening soil in ecological environment construction.

Convey all kinds of engineering construction in the plain concrete, fiber concrete.

Concrete mixer pump most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* CE, ISO Certification available.

* View our Factory.


After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

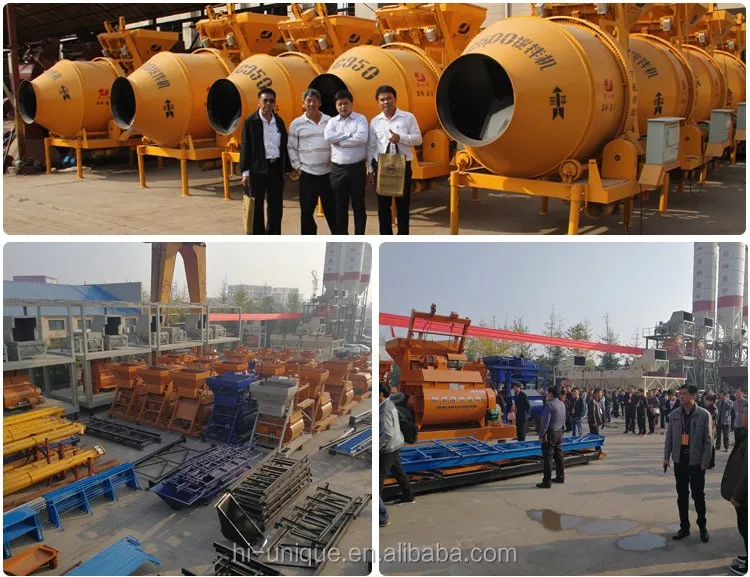

Our Company

Company Information:

Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Mixer Truck, Concrete Pumps and Block Making Machines and etc...

UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.


UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!

Related Products

FAQ

Q1: Are you trading Company or Factory?
We are factory. We have been engaged in the production of concrete machine for more than 30 years.

Q2: What's the lead time for regular order?
Generally it is around 7 days if the goods in stock. If there is no goods in stock, it will be about 20 days, subject to the quantity you ordered.

Q3: What is your payment method?
30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.

Q4: What is the capacity of your concrete mixer pump?
We have 20m-80m3/h, diesel or electric two types.

Q5: How long and high you want to pump?
We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.


Q6: Do you provide after-sale service?
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q7: Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
