Factory high quality precast concrete plant equipment concrete batch plant

FOB Reference Price:Get Latest Price
$10,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HZS60
Production Capacity:
60 m3/h
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Power Type:
Electric
Power(W):
100kw
Dimension(L*W*H):
25000*10000*19400 mm
Weight:
60T
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Applicable Industries:
Construction works
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Unique
Certification:
CE ISO
Product name:
HZS60 Belt conveyor Type Small Concrete Batching Plant
Keyword:
Concerete Batch Plant
Capacity:
60 m3/h
Application:
Construction Projects
Type:
Fixed Concrete Batching Plant
Color:
Customer Required
Model:
HZS60
Discharging Height:
3.8m
Productivity:
60 m3/hr
Max Aggregate Size:
60/80 mm
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
main machines tightend to containers, spare parts in wooden case
Port
Qingdao Port, China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description



Descriptions of Concrete Mixing Plant



HZS series of Concrete Batching Plants is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic.



HZS series concrete batching plant belongs to compulsory and efficiency equipment,It includes JS concrete mixer, PLD batching machine,cement silo and control system. The main machine of this series use JS series double shaft compulsory mixer.



It is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete

Main component of HZS35 concrete mixing plant

Item

Specification

1.Mixing system

Twin Shaft Concrete Mixer: JS1000

Pneumatic discharge, mixer platform, weighing platform, double floor with roof rain proof, dust collecting systerm

2.Batching system

PLD2400-4 bins - 12 m³ independed weighing

3.Belt conveyor

Mid-way storage bin

Conveyor belt with closed cover

Rain-proof, dust-proof, double observe ladders, environmental

4.Weighing system

Cement, fly ash, water, additivity dosing with special platform

5.Additives tank

2m³withauto-mixing device, and pump

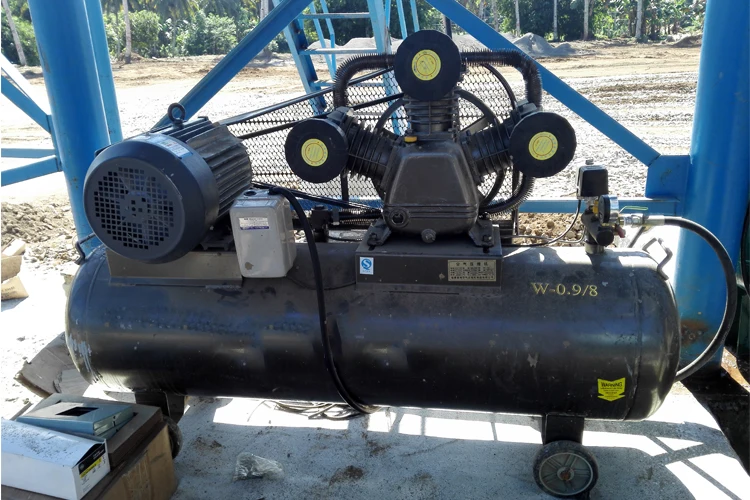

6.Pneumatic system

CE proved air compressor, and Butterfly gate, Air storage tank

7.Circuit system

Thicken copper line with high quality

8.Fully automatic control system

Automatic computer & Manual button control

Siemens PLC, Schneider electric components

9.Control room

2.1*3.6*0.8m with matched support legs, light and air conditioner

Optional parts

10.Cement silo

100T/Detachable bolted type;

60T/ Detachable bolted type

11. Screw conveyor

Dia 219mm*8m

12.Full cover

90m³ cover the whole mixing building



Detailed Images

[ Parameter of HZS60 concrete mixing plant ]

ItemSpecification

Theoretical Capacity

60 m3/h

Real capacity

60 m3/h

Mixing Time

60 S

Max Aggregate Size

60/80 mm

Discharging Height

3800 mm

Total Power

100KW

Total Weight

60Ton

Total Dimensions

25000×10000×19400 mm



Mixing Building

1. The mixing building uses the section to take the king beam, the structure is reliable, windproof and earthquake-resistance.

2. The cables in the building are set in grooves, the appearance is neat and it is environmental friendly.

3. The outside uses froth sandwich,elegant appearance, heat preservation,adapting cold weather in the north.



Aggregate Batching System

Sand & gravel batching machine use Domestic well-known brand or originally imported parts PLD2400,  microcomputer control,independent weighing(accumulative weighing) completely guarantee high-accuracy weighing,high efficiency and excellent performance.with has highly accuracy measuring.

Control System

 The controlling is independently completed by PLC with high reliability. It has various controlling modes like automatic mode,semi-automatic mode and manual mode.


Packaging & Shipping

 Standard exporting package for Concrete Batching Plant Machine



Project cases



Quality Control

 With our strong commitment to excellence, our company has consistently worked to ensure the highest quality. Our concrete mixing plants and concrete mixers have been certified with ISO9001:2000 & CE certificate of authentication.

Our strict quality control system ensures the best quality of all delivered products from our company. Zero-tolerance for inferiority is the characteristic that distinguishes Unique from other construction machinery manufacturers.





Company Information

UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.

For 40 years, UNIQUE Group relied on scientific and technological innovation, optimize the structure of products. Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine, HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary concrete mixers and so on concrete mixing machinery.

UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!



Our Services

Service and Support

UNIQUE has the 12 workshops to produce every part of concrete mixing plants and we can produce spare parts to delivery thern to you within 2 days.

Why choose us?

UNIQUE was founded in 1973, more than 40 years dedicated to building construction enterprises make the most suitable products and services.
