Diesel oil type trailer lightweight trailerable concrete pump 60m3/h concrete output motor driven hydraulic pump

FOB Reference Price:Get Latest Price
$8,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HBT20S-10-30
Power(W):
30kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 8 Negotiable
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
4600*1500*1550mm
Weight:
1550kg
Warranty:
12 Months
After-sales Service Provided:
Video technical support, Field maintenance and repair service, Free spare parts, Online support
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China
Brand Name:
UNIQUE
Certification:
ISO CE
Product name:
trailer concrete pump
Application:
Construction Engineering
Color:
By Customer's Requirement
Concrete pump:
Pumping Concrete Machine
Pump Time:
22 pump/min
Concrete pump type:
Concrete Mixer Pump
Max. Horizontal Conveying Distance:
350m
Volt:
380V
Speed:
1480r/min
Mixer Speed:
24r/min
Supply Ability
Supply Ability:
8000 Set/Sets per Year
Packaging & Delivery
Packaging Details
main machines tightend to containers, spare parts in wooden case
Port
Qingdao Port, China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 8 To be negotiated
Product Description

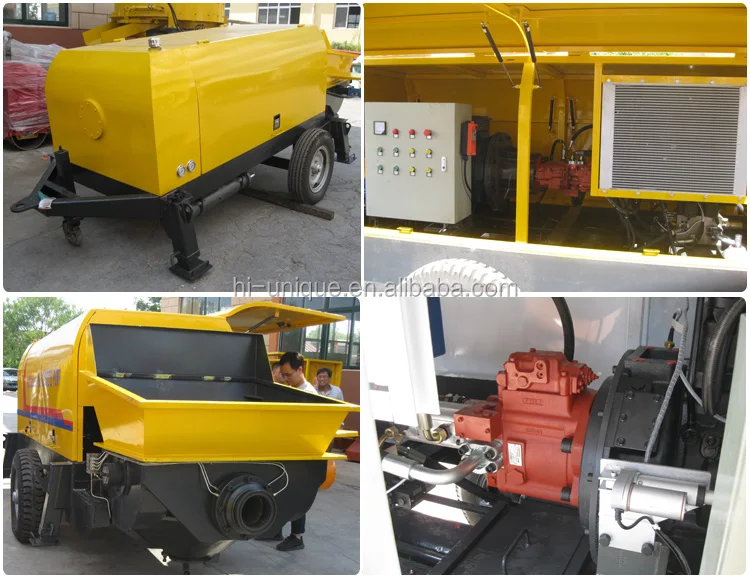

Description of Trailer Concrete Pump

UNIQUE Concrete pump design is light, easy to move, suitable for small construction projects.

With full hydraulic system can extend component life, improve equipment reliability, reduce the failure rate and recuce maintenance costs.

The "S" tube valve are cast into shape with austenitic manganese steel and has the dual advantages of anti-high pressure and anti-wearing.

The main electric elements are from Schneider and LG company, the reliability of the electric control system is highly approved.

The glasses plates and cut loops are made of anti-wearing alloy, they have long service life.

The lubrication system adopts progressive distributor which suppliers every lubrication point with oil in turn, and the oiling time can be set to save oil.



Product Details



ModelHBT20S-10-30
Motor rated power30 kw
Max. delivery pressure Low/High pressure7Mpa
Max. concrete output Low/High pressure70 m3/h
Delivery cylinder Bore*Stroke∅200*1400 mm
Hopper capacity* Feeding height0.6*1415 m3/mm
Dimension(L*W*H)4600*1500*1550mm
Gross weight1550 kg
Max. aggregate size ∅150mm delivery pipe50 mm
Max. aggregate size ∅125mm delivery pipe40 mm
TypeGate Valve
Slump of concrete100~230 mm



Features of trailer concrete pump
1,With the characteristic of large capacity, high pressure, saving time material, and easy to move.
2, It not only can dual fluid grouting, but also can single liquid grouting
3,The concrete pump also be used with double hore, at the same time, can be used as grouting clear water pumps, sewage pumps, mud pump etc.
4,It is widely used in tunnel digging ,maintenance road and bridge dam mine construction of high-rise building foundation and all kinds of injection constructions.

Packaging & Shipping



Company Information

Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete MixersConcrete Mixing PlantsMobile Concrete Batching PlantsTower CranesBuilding HoistsConcrete Mixer TruckConcrete Pumps and Block Making Machines and etc…

For 40 years, UNQIUE Group relied on scientific and technological innovation, optimize the structure of products. Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine, HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary concrete mixers and so on concrete mixing machinery.

UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!



Our Services

Service and Support

UNIQUE has the 12 workshops to produce every part of concrete mixing plant, concrete pump and we can produce spare parts to delivery thern to you within 2 days.



Why choose us?

UNIQUE was founded in 1973, more than 40 years dedicated to building construction enterprises make the most suitable products and services.

FAQ

Q1: Are you trading company or manufacturer?

A: We are factory.



Q2: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.



Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.



Q4: Do you have CE certificate for your concrete pump?

A: Yes, we have. Both are our patent products, certificated by CE.
